The arc-shaped soft-wing barrier gate adopts our company's exterior cabinet, which is novel, beautiful and uniquely shaped. It is easy to use and convenient for overall maintenance. The door body is driven by a synchronous belt. When the closing resistance exceeds the set value, the door body can open automatically. In case of power failure, the door body will also open automatically without the need of a battery. The intelligent barrier gate is an intelligent access management device for non-contact passage detection and control, adopting the company's latest patented mechatronics control and drive technology. Multiple groups of sensors control the entrance and exit through the glass door wings. Authorized personnel can pass smoothly without any obstruction and without the need for individual inspection, while unauthorized access is denied. It provides high-quality entrance and exit control to ensure the safety of children in the park.

This barrier gate is suitable for kindergartens, primary schools, office buildings, hotels and other parks. Service life and safety are the primary considerations for the product. The entire system operates with a stepless positioning device, and the operation process is controlled by sensors, without mechanical impact, thus achieving smooth operation, low noise and less wear. Based on the summary of actual usage data from numerous projects, the actual service life of the equipment is more than 5 million times. High-cost components such as magnet adsorption, belt transmission, and servo mobile positioning drives are all humanized designs to avoid pinching children.

Technical Specifications JOT-BT-Y260-1/2

Dimensions (mm) and Weight (kg)

Length: 1400 mm

Width: 300 mm

Height: 980 mm

Weight: Approximately 50 KG

Main Materials

Cabinet: 304 stainless steel

Surface Treatment: Brushed / Polished / Electroplated / Powder Coated

Movement: 45# steel with colored zinc plating on the surface; Mechanical movement: [Based on German technology] Non-destructive movement

Infrared: Stainless steel anti-glare metal sensor

Door Body: Organic glass or extra-soft rubber

Movement Performance

Transmission Mode: Servo mobile positioning driver

Safety Mode: Unobstructed passage after power failure

Power-assisted Drive: Brushless motor

Door Opening Method: Center-split and opposite-opening

Door Opening/Closing Speed: 0.1-999 seconds (user adjustable)

Passage Width: 550mm-600mm;

Door Body Stroke: 300mm (single door body)

Equipment Noise: ≤30db when opening and closing the door

Passing Speed: 35 persons/minute in normally closed mode; 60 persons/minute in normally open mode

Control Input/Output: 6 channels of switch output (12V and 24V dry contact signals) /

Functional Features

• Multiple sets of infrared sensors monitor the channel status in real-time, with precise logical judgment for unobstructed authorized passage

• Four-fold protection for pedestrians in the channel, including mechanical device protection, door

position detection, current detection, and channel sensor protection, to prevent pinching

• The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical impact

• CNC machining process, fine surface treatment, and strong corrosion resistance

• Automatic reset function: if a pedestrian does not pass within the specified time after legal verification, the system will automatically cancel the user's passage permission for this time.

• Convenient and easy to use, facilitating the passage of personal belongings such as packages and luggage

• Anti-tailgating function: protection level 2

• Passage mode: one-way, two-way (optional), adjustable running speed; multiple working modes available for selection

• Light prompt: direction of passage indication

• Lightning protection and leakage protection functions

• Protection functions: anti-pinch, anti-collision, anti-blocking, anti-stall, and anti-electrical overvoltage and overcurrent functions

• Prevention of illegal operations and alarm function

• Standard external electrical interface with photoelectric safety isolation, which can be connected with various control devices for easy system integration

• Remote control and setting functions

Electrical and Environmental Specifications

• Voltage: 110V to 240V AC (wide range of power input voltage)

• Frequency: single-phase 50Hz to 60Hz

• Operating voltage: DC24V

• Current: 300mA at static state; 4A at dynamic state (maximum operating current)

• Operating temperature: -20 to 70°C (-4 to 158°F)

• Storage temperature: -40 to 80°C (-40 to 176°F)

• Relative humidity: 5% to 95% in non-condensing state

Expandable Functions

2.2 Expandable functions:

• Two-way automatic counting function, which can "add" in the forward direction and "subtract" in the reverse direction, automatically counting the number of people present (customized).

• Voice prompt function: "Welcome! Have a nice trip! Please swipe your card!" etc. (customized);

• Selection of telescopic arm material and original color.

Installation Requirements

Single-phase 3A 110V to 220V AC power supply, grounded

Connecting wires to control equipment

Possible civil engineering work and fixing work

Remarks:

Security Level 1: Basic anti-tailgating identification system. The equipment is relatively short in length and meets the basic level of bidirectional single-person passage identification.

Security Level 2: Anti-tailgating identification system with optimal length and structure, reaching a high level of bidirectional single-person passage identification, and capable of identifying children and strollers.

Security Level 3: This equipment uses mechanical devices and sensors installed on the machinery for bidirectional passage identification and tailgating control.

Product Application Examples：

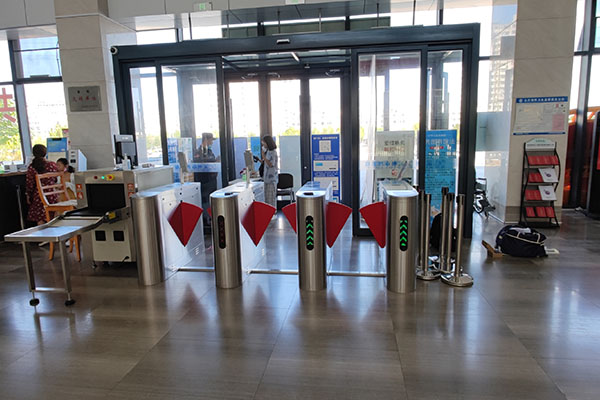

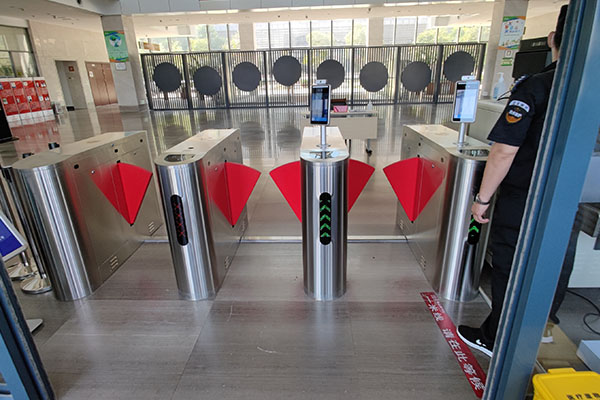

This picture shows the on-site application of our arc-shaped soft flap barriers at a public library in China.
