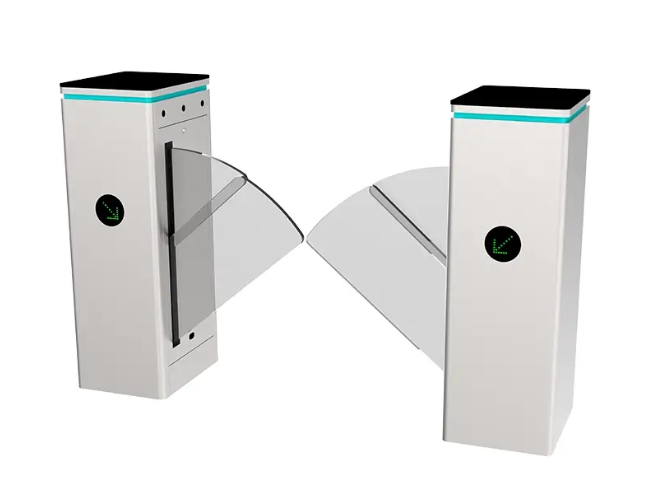

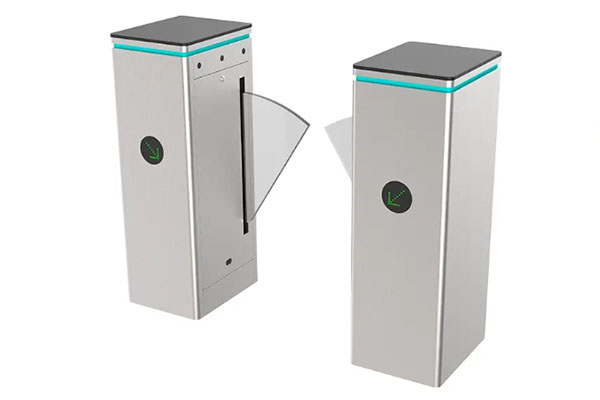

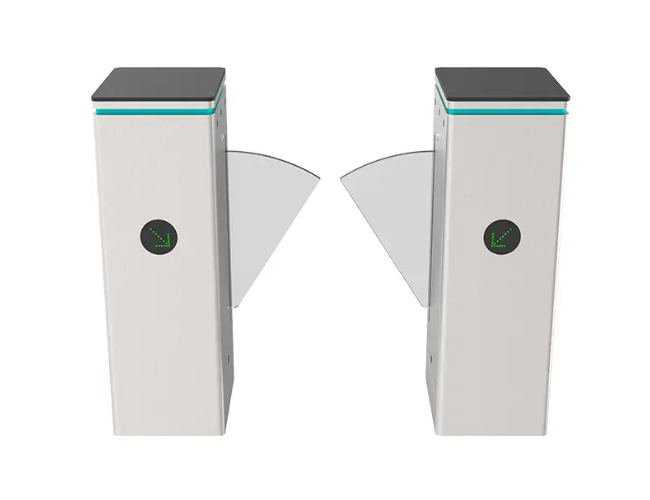

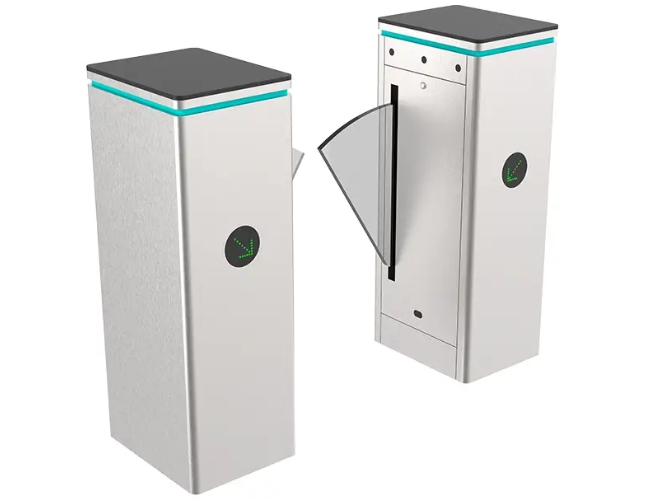

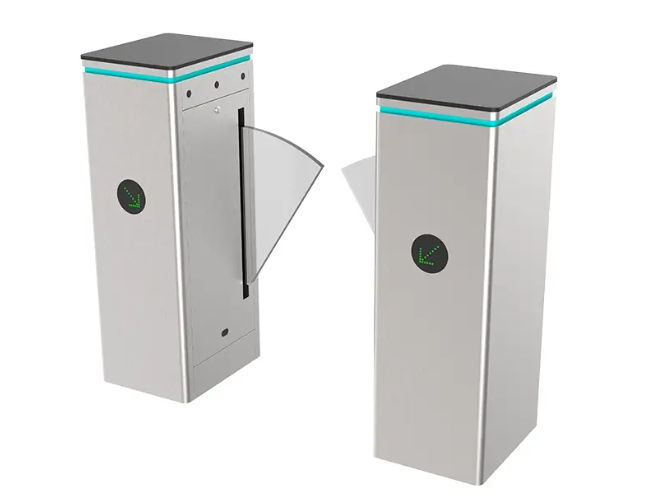

Gym Flap Barrier Turnstile JT315

This vertical flip-up turnstile, designed specifically for gym and fitness center access control systems, combines a minimalist design with stable and secure performance. The transparent acrylic flip-up provides a wide visual effect while effectively preventing tailgating. Its low-noise, fast opening makes it ideal for gyms, yoga clubs, and other fitness facilities with high member traffic.
1.Product Dimensions: Gym Flap Barrier Turnstile Standard cabinet dimensions are 400 × 300× 980 mm（1.31*0.98*3.22 ft）; custom sizes are available upon request.
2.Aisle Width: Standard single aisle 550–600 mm; optional up to 900 mm for easy access for wheelchair users and large exercise equipment.
3.Outer Shell Material: Standard SUS304 brushed stainless steel cabinet; optional SUS316 stainless steel upgrade for humid environments such as gym shower areas, enhancing rust and corrosion resistance.
4.Flip-up Material: Standard transparent imported acrylic; optional tempered glass for higher security requirements.
5.Surface Treatment: Default brushed stainless steel; custom finishes such as painted or polished are available to match the gym’s interior design.
6.Pedestrian Flow Direction: Programmable one-way or two-way passage for flexible management of member entry and exit.
7.Drive Mechanism: High-performance servo brushless motor core drive ensures stable, ultra-quiet flap operation and rapid response even during prolonged peak hours.
8.Passage Capacity: Gym Flap Barrier Turnstile 30-45 people per minute during normal operation, perfectly meeting the gym’s morning and evening peak check-in needs.
9.Safety Features: Multi-point infrared anti-pinch + automatic obstacle rebound; automatically opens all flaps in case of power failure for convenient emergency fire evacuation.
10.Access Compatibility: Supports facial recognition, NFC wristbands, IC cards, and QR code scanners, compatible with mainstream gym membership management systems.

Consult immediately

JINBO Turnstile carries a 2 years warranty and durable maintenance and repair support.

JT315 Flap Barrier Turnstile Functional features

Anti-tailgating & Anti-piggyback Detection

Built-in multiple groups of infrared sensing beams to identify tailgating behavior; the wing stays locked if a second person attempts to sneak through behind verified users, efficiently preventing non-members from unauthorized free access into fitness venues.

Remote Debugging & Parameter Setting

Supports upper computer software remote configuration and online troubleshooting; admins can adjust flap opening speed, access delay time and passage mode remotely without on-site machine disassembly, greatly reducing after-sale maintenance workload for gym operators.

Delay Auto-close Function Adjustable

Customizable auto-closing delay timer from 0.5s to 10s after each valid access. Longer delay setting is available for users carrying large fitness equipment or disabled visitors to pass leisurely without wing sudden clamping.

Abnormal Alarm Prompt Function

Triggers sound & indicator light warning under abnormal status such as forced prying, man-made damage or stuck flap faults; real-time abnormal feedback helps managers discover and fix equipment failure timely to avoid access paralysis during gym peak hours.

Offline Standalone Working Mode

The turnstile can work independently offline without continuous connection to gym management host; all access records and member permission data are locally stored inside the machine, data will not get lost when network drops off suddenly.

Customized Access Authority Group Management

Classify member access permissions by membership type: regular member, VIP member and private coach. Set limited access period and available access time window for different user groups to realize refined gym membership management.

Environment Adaptation & Wide Working Range

Designed for indoor gym ambient from -20℃~+60℃; SUS316 cabinet option resists sweat and damp corrosion near shower and sauna areas, stable running under high humidity gym environment all year round.

LED Status Indicator Light Reminder

Top decorative cyan ambient light plus front green/red directional arrow indicator; green arrow for passable lane, red arrow for forbidden access, intuitive traffic guide for gym visitors to follow access rules easily.

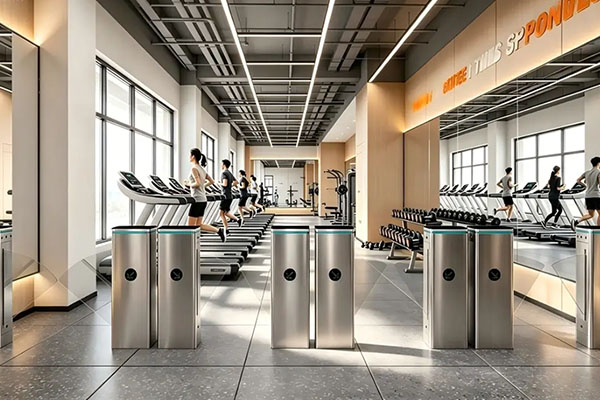

JT315 Flap Barrier Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

JT315 Flap Barrier Turnstile Scene rendering

JT315 Flap Barrier Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

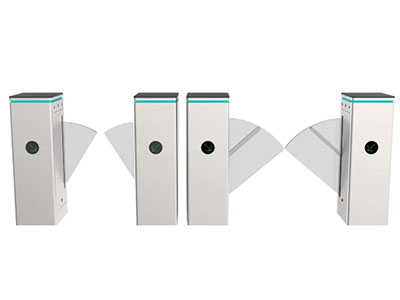

Optional：Number of turnstile channels

The diagram shows a dual-channel system consisting of two single-core and two double-core wing and rotary gates. If more channels are needed, the number of rotary gates can be increased.

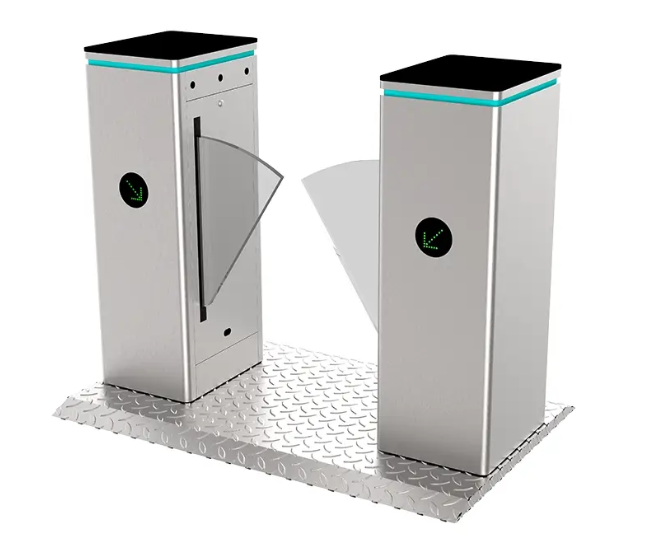

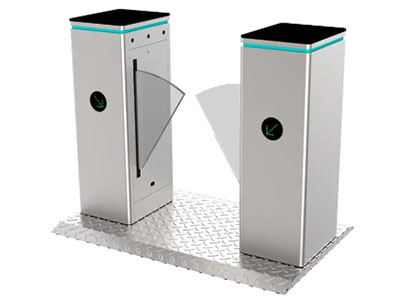

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

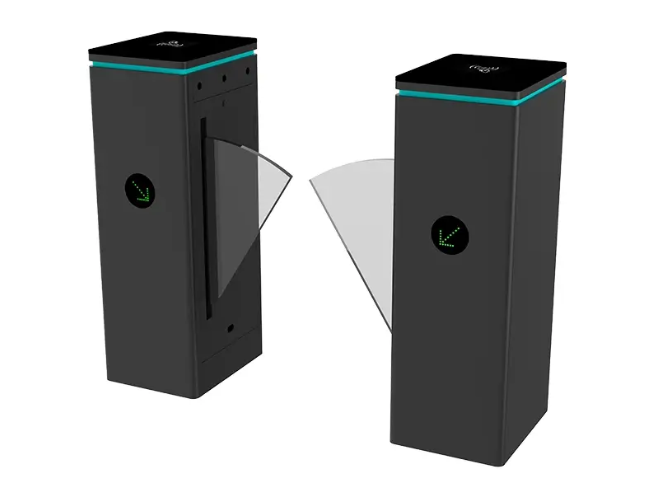

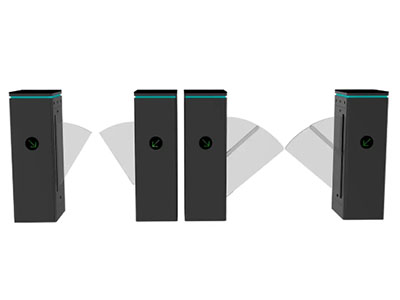

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

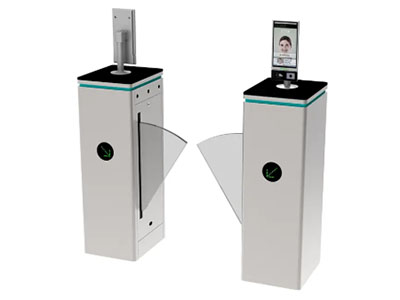

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Diverse Methods of Passage Compatibility.

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional QR Code: We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Touch Button

Optional Touch Button:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Card

Optional Card:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Face Reader

Optional Face Reader:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Remote Control

Optional Remote Control:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Fingerprint Scanner

Optional Fingerprint Scanner:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can this flap turnstile work with my existing gym membership system?

A: Yes. Our JT315 turnstile supports facial recognition, NFC wristband, IC membership card and QR code access modes, compatible with most mainstream gym management software on the market. We provide free communication protocol docking guidance to connect your original member system without replacing your existing management equipment.

2.Q: Is the gate safe for kids and the elderly when passing? Will it clamp people accidentally?

A: Equipped with multi-point infrared anti-pinch + obstacle auto-rebound function. Once the flap touches human body during closing, it will retract immediately to avoid pinching injuries. Besides, we can adjust auto-close delay time for slow-moving seniors and children to pass safely.

3.Q: The gym shower area is humid, will the cabinet get rust easily?

A: Standard cabinet is SUS304 brushed stainless steel for daily dry gym area; optional SUS316 anti-corrosion stainless steel upgrade is specially customized for humid shower & sauna surroundings, effectively resisting sweat and moisture corrosion to extend service life.

4.Q: What happens if power cuts off suddenly during gym business hours?

A: When power fails, all flaps will automatically open fully to keep passage unblocked, meeting fire evacuation standards. Optional backup UPS power supply can keep the whole gate working for 3-6 hours for unexpected power outage at peak workout time.

5.Q: Can I adjust passage width to fit members with wheelchairs or big sports bags?

A: Standard single lane width is 550-600mm, customized widened channel up to 900mm is available. The widened aisle is friendly for wheelchair users and customers carrying large yoga mats, dumbbells and other bulky fitness equipment.
