Access Indicator: LED warning lights indicate traffic direction using highly visible green and red lights. The LED is green when passage is permitted; blue in standby mode; and flashing red when passage is denied.
Alarm Function: Infrared sensor alarm function for unauthorized and reverse intrusion.
Emergency Exit Function: Allows free passage in emergencies or power outages, automatically resetting upon power restoration.
Automatic Reset: After a valid card is swiped, the system automatically cancels the user’s passage permission if passage is not permitted within the designated time.
Anti-Collision: When the door experiences an impact exceeding safe limits, the mechanical arm automatically resets to its original position. The mechanism remains undamaged.
Reverse Entry: If someone attempts to enter from the opposite direction, the door will remain locked.
Anti-Pinch Function: Dual mechanical and infrared anti-pinch function. If the arm encounters obstruction during reset, it automatically stops or rebounds, simultaneously emitting an alarm signal.
Anti-Tailgating: If multiple people attempt to pass without permission, the door will alarm. Security Level 2.
Intrusion Prevention Function: The door automatically locks before receiving a valid opening signal. When a valid signal is received, the gate will unlock within 0.2 seconds (adjustable).
Multiple operating modes are available: one-way passage, two-way passage, infrared gate opening, or passage controlled by a gate opening signal sent to the main board, all configurable via the main board menu.
Logic Judgment: Multiple infrared sensors monitor the channel status in real time, accurately determining and authorizing passage without obstruction.
Passage Modes: Entry and exit directions can be independently set to 【Controlled Passage】/【Free Passage】/【No Passage】.
Passage Request Memory Function: When two or more valid passage signals are given simultaneously (including same-direction and opposite-direction), the system will remember all passage requests and complete each passage action sequentially (the number of requests to remember and whether to select the memory function can be customized according to customer requirements).
Safety Features: Equipped with lightning and leakage protection.
Multi-level Anti-collision Buffer Function: In case of unauthorized passage or gate breaching, the gate arm buffers at the corresponding angle and activates immediate counter-thrust and clutch locking, while simultaneously triggering an alarm. This provides humane protection against injury while significantly reducing mechanical damage caused by frequent or continuous collisions. Multiple alarm modes: alarms for unauthorized entry, anti-intrusion, tailgating, and timeout.
Voice prompts: prompts for entry and exit; multiple voice prompts can be set (customizable).
Integration protocol: Free development kit protocol provided for easy control and debugging; highly scalable.

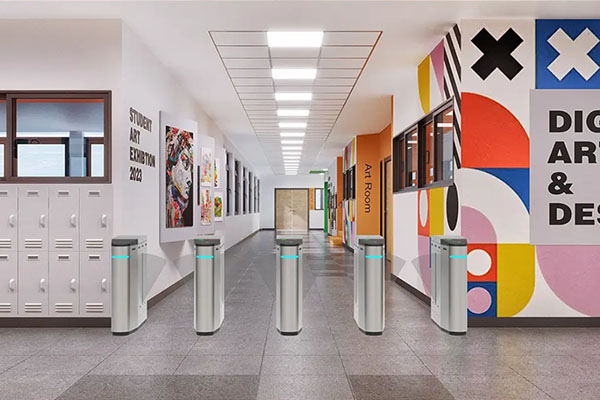

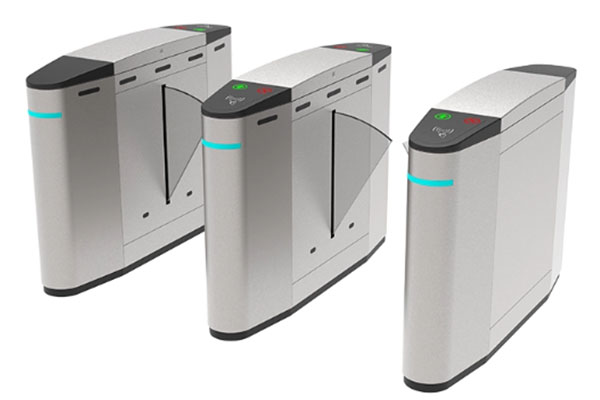

Flap Barrier Turnstile Scene rendering
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.
We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

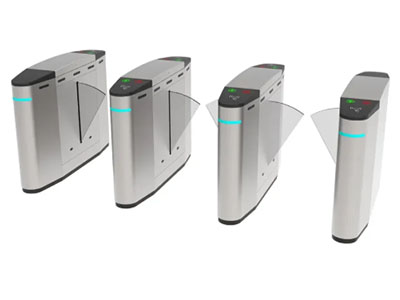

Optional：Number of turnstile channels
The diagram shows a dual-channel system consisting of two single-core and two double-core wing and rotary gates. If more channels are needed, the number of rotary gates can be increased.

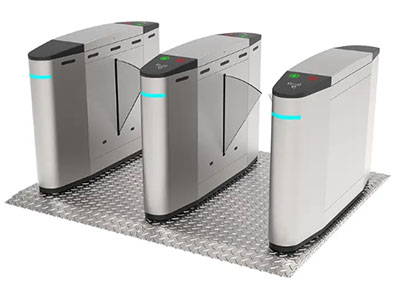

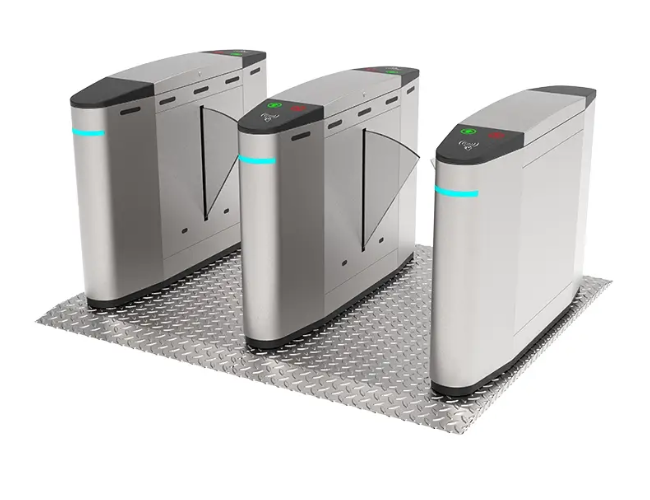

Optional： guardrails and base
Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

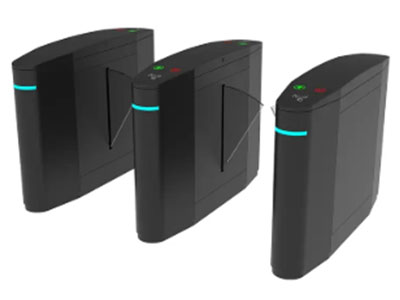

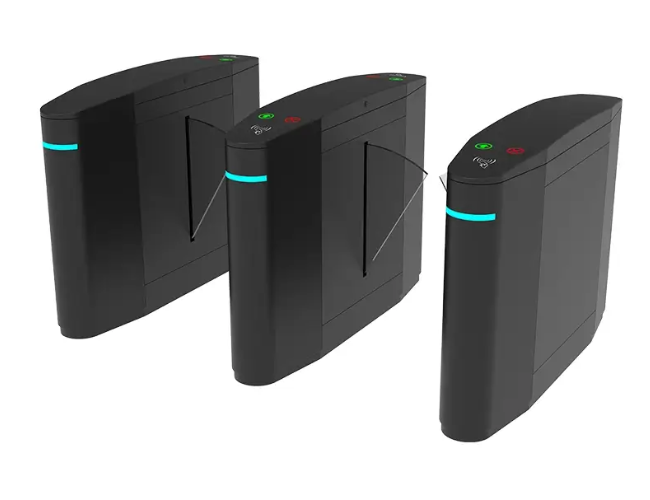

Optional：Turnstiles color
In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

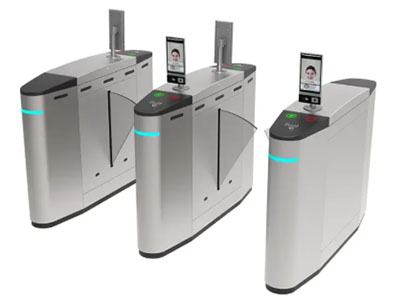

Optional： your own exclusive pass
Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.
Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.
Optional QR Code: We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.
Optional Touch Button:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.
Optional Card:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.
Optional Face Reader:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.
Optional Remote Control:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.
Optional Fingerprint Scanner:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

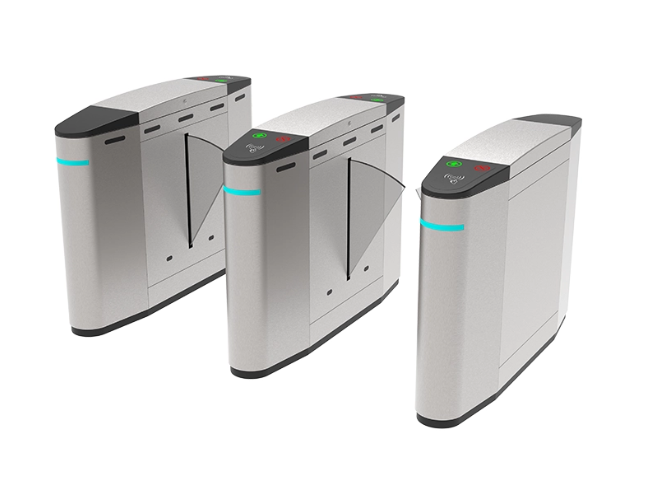

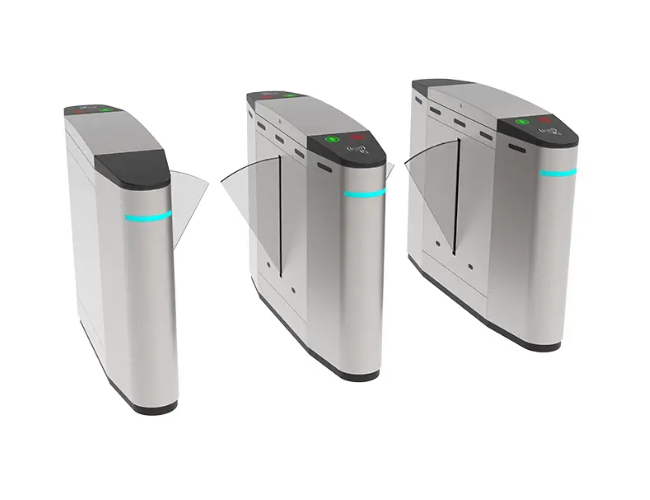

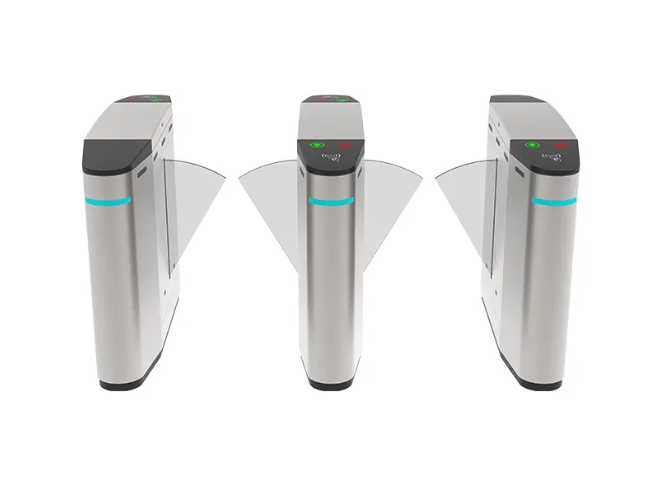

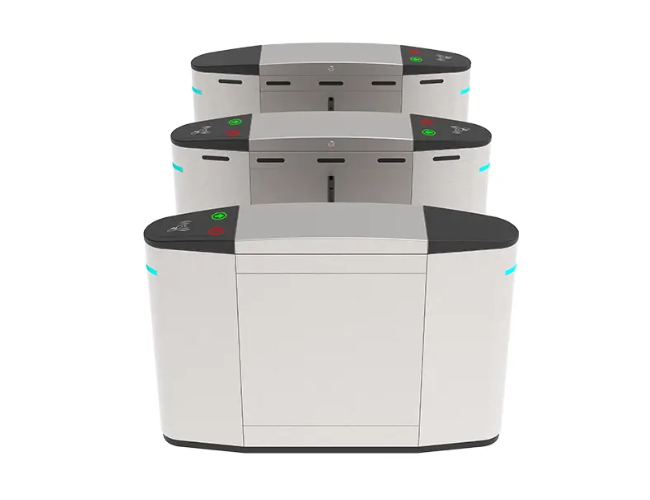

The JT304 flap barrier turnstile gate is an intelligent pedestrian access control system, commonly used for access control and time attendance management. Its core features and information are as follows:
Appearance and Materials: The main body is made of 304 stainless steel (approximately 1.2-1.5mm thick), making it rust-resistant and durable. The wing panels are made of transparent acrylic, featuring a simple and elegant design. The cabinet dimensions are typically around 1200×300×980mm, and a single unit weighs approximately 65-90kg.
Core Functions：
Identity Recognition: Compatible with multiple verification methods including IC/ID cards, facial recognition, and QR codes; it can be integrated with access control and attendance systems.
Security Protection: Infrared anti-pinch (automatic rebound upon obstruction), anti-tailgating/illegal intrusion alarm, mechanical anti-impact (wing plates lock when there is no gate opening signal).
Intelligent Control: Supports one-way/two-way passage, normally open/normally closed mode switching, automatic reset after a timeout (default 5 seconds) after gate opening.
Emergency Protection: Automatic gate opening upon power failure, meets fire evacuation requirements, and can also be remotely controlled to open/close.
Performance Parameters: Passage speed approximately 30-40 people/minute, gate opening/closing time 0.2 seconds.
Operating Ambient Temperature: -35°C~60°C; supports indoor/outdoor installation (outdoor installation requires a rain shelter).
Applicable Scenarios: This model is highly effective as flap barriers for stadiums and flap barriers for airports. It is also commonly used in office buildings, residential communities, factories, subway stations, and scenic spots to achieve intelligent management of personnel access
