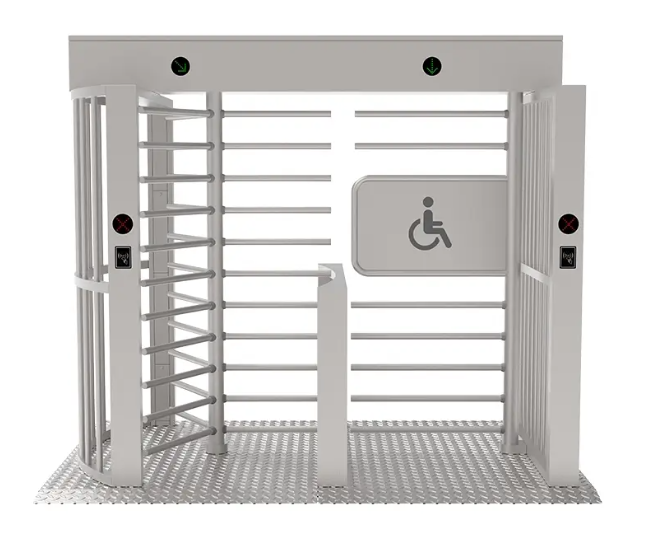

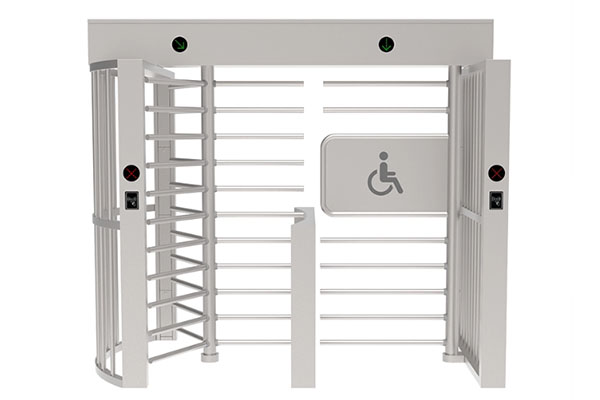

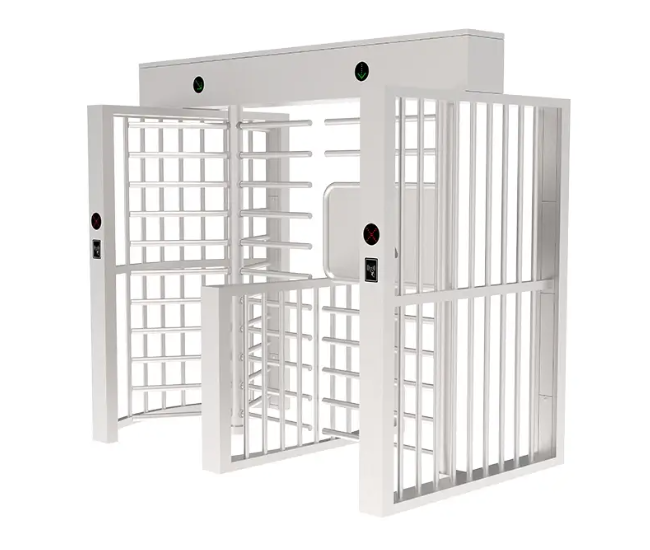

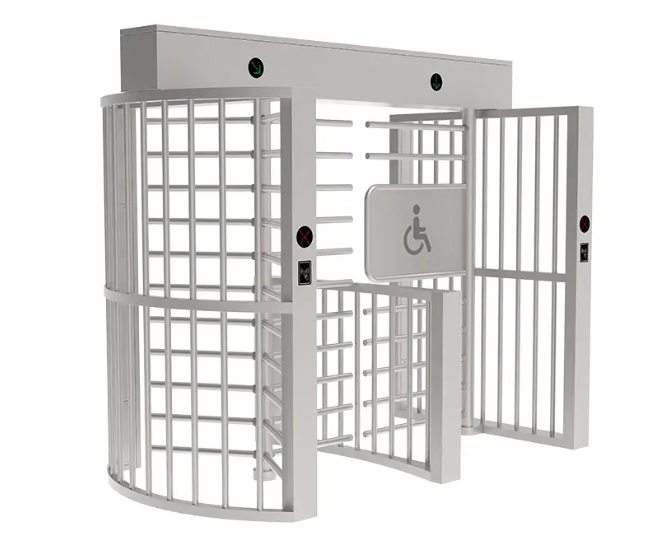

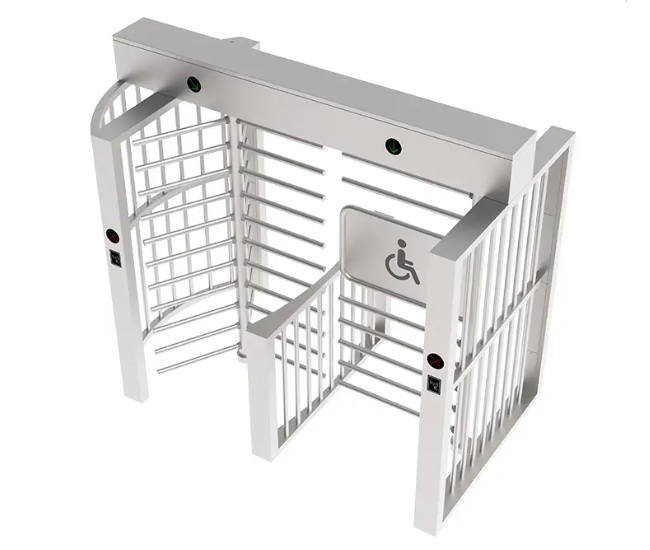

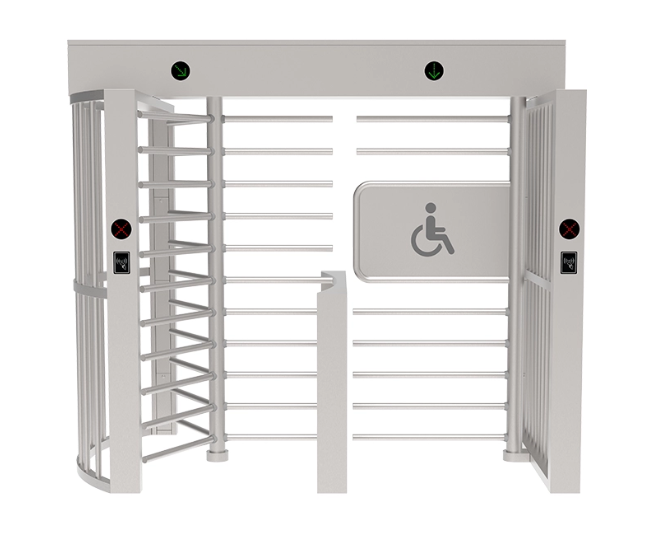

JT503 Accessibility Full Height Turnstiles

JT503 Accessibility Full Height Turnstiles

This integrated Full Height Turnstiles combines a full-height turnstile with a dedicated barrier-free door, built for secure, inclusive access. Made of durable 304 stainless steel, this robust Full Height Turnstiles prevents unauthorized intrusion while accommodating wheelchairs and strollers. Equipped with multi-verification access, anti-tailgating sensors, and emergency release, the Full Height Turnstiles ensures safe, compliant passage for all users.
1.Product Dimensions: 2650*1500*2300mm（8.69*4.92*7.55） ft as standard, with full structural customization available to suit site-specific installation layouts and space limitations.
2.Aisle Width: Standard aisle width is 650 mm (2.13 ft);Accessibility walkway width: 900 mm (2.95 ft), with customized width solutions available to accommodate special passage demands.
3.Enclosure Construction: The standard configuration adopts premium SUS304 stainless steel, which is rust-proof, wear-resistant and suitable for most conventional indoor and outdoor scenarios. SUS316 stainless steel is available as an upgraded option, providing enhanced corrosion and salt-spray resistance for coastal, high-humidity and harsh industrial environments.
4.urnstile Operation Mode: Semi-automatic mode is configured as standard for cost-effective and stable daily operation. Fully automatic mode is available for customized upgrade, featuring more intelligent sensor induction and a streamlined passage experience.
5.Traffic Direction: Supports configurable one-way or two-way passage modes, allowing flexible and scientific management of pedestrian flow according to the actual access control rules of the site.
6.Drive & Control System: Equipped with mature and reliable mechanical drive and intelligent control modules, supporting continuous frequent operation. It features sensitive induction, anti-jamming operation and automatic reset functions, effectively preventing card-passing without entry and illegal trailing behavior.
7.Passage Throughput: Capable of handling 25–30 persons per minute under normal operating conditions, meeting the high-frequency pedestrian passage demands of medium and large traffic scenarios.

Consult immediately

JINBO Turnstile carries a 2 years warranty and durable maintenance and repair support.

JT503 Full Height Turnstile Functional Features

Barrier-Free Access Function

Wide Passage Design: Equipped with a dedicated accessible passage (typically ≥800-900mm wide) to allow unobstructed passage for wheelchairs, strollers, large luggage, and assistive devices, meeting accessibility standards.
Sensor-Activated Access: High-precision infrared or radar sensors detect wheelchair users and individuals with reduced mobility, automatically opening the accessible door and adapting to slower movement speeds to prevent pinching or stalling.
Low-Threshold Design: The bottom is free of raised thresholds, ensuring smooth passage for wheelchairs while preventing water and debris accumulation that could impede movement.

Security Control & Anti-Tailgating

Anti-Climb Full-Height Structure: Constructed with fully enclosed stainless steel bars to prevent climbing or crawling over, enabling strict entry/exit control.
Anti-Tailgating Detection: Integrated infrared sensors identify multiple-person tailgating or unauthorized entry, triggering audio-visual alarms and locking the channel.
Precision Access Control: Interfaces with access control systems to allow only authorized personnel entry, with configurable one-way or two-way passage modes to meet site-specific crowd management needs.

Smart Identification & Integration

Multi-Reader Compatibility: Supports multiple authentication methods including RFID cards, QR codes, facial recognition, fingerprint recognition, and ID card verification, adapting to diverse on-site requirements.
Seamless System Integration: Connects to visitor management, time & attendance, and security platforms for real-time transmission of access data, with support for remote monitoring and configuration via the backend.

Emergency & Safety Features

Emergency Mode Switching: Supports fire alarm integration, automatically unlocking or keeping the accessible door open during emergencies to facilitate rapid evacuation. Configurable Fail-Safe/Fail-Secure modes adapt to different safety scenarios.
Audio-Visual Guidance & Alerts: Equipped with traffic lights and buzzers to indicate passage status (green = go, red = stop) and trigger alerts for anomalies, assisting users with visual or hearing impairments.
Emergency Stop Button: A prominently located emergency stop button cuts power instantly in case of an emergency, protecting users.

Durability & Environmental Adaptability

Corrosion-Resistant Material: Constructed from 304 stainless steel with anti-corrosion and scratch-resistant finishes, suitable for both indoor and outdoor environments with high humidity or dust, ensuring long service life.
Reliable Drive System: Features a quiet servo or geared motor for smooth, low-noise operation with minimal failure rates, supporting high-frequency, long-duration use.
Weather-Resistant Design: Outdoor-rated models offer waterproof, dustproof, and sun-resistant performance, operating reliably across a wide temperature range of -20°C to 60°C.

User-Friendly Design Details

Adjustable Passage Speed: The accessible door’s opening/closing speed is fully adjustable to accommodate the slower pace of wheelchair users, eliminating sudden movements.
Anti-Pinch & Anti-Collision Protection: Infrared anti-pinch sensors and mechanical cushioning automatically reverse the door if an obstruction is detected, preventing injury or equipment damage.
Easy Maintenance: Modular construction allows quick removal and replacement of core components, reducing long-term maintenance costs and simplifying servicing.

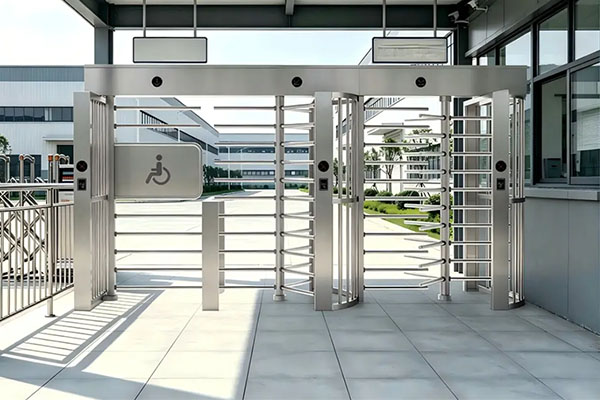

JT503 Full Height Turnstile Scene Rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

JT503 Full Height Turnstile Scene Rendering

JT503 Full Height Turnstile Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

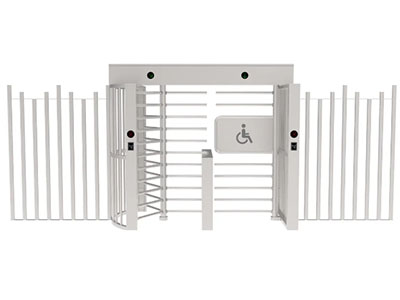

Turnstile Guardrail

Optional：Turnstile Guardrail

As illustrated in the diagram, this is a combined solution of the Full-Height Turnstile and matching guardrails. When the entrance/exit width is wider than required for a single access point but only one passage is needed, the remaining excess space can be neatly segregated with the guardrails. This setup not only precisely demarcates the pedestrian flow area to prevent disorderly access but also delivers a seamless visual integration between the turnstile and guardrails, resulting in a more organized and streamlined passage layout. Additionally, it optimizes on-site space utilization, striking a perfect balance between robust security control and rational space planning.

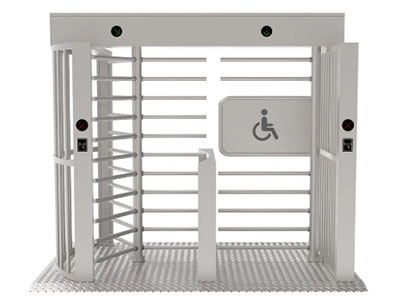

Turnstile base

Optional： Turnstile base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

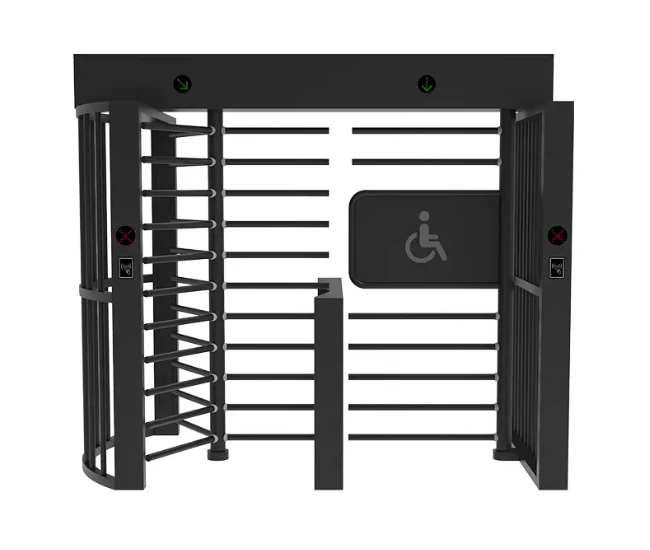

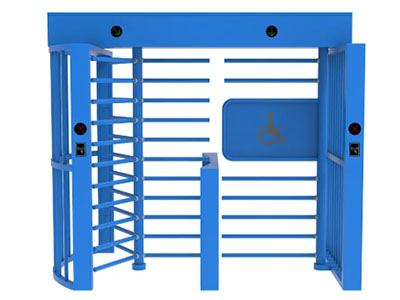

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

Diverse Methods of Passage Compatibility.

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional QR Code: We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Touch Button

Optional Touch Button:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Card

Optional Card:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Face Reader

Optional Face Reader:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Remote Control

Optional Remote Control:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Fingerprint Scanner

Optional Fingerprint Scanner:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

1.Q: Can wheelchairs and strollers pass through the accessible full-height turnstile? Is the passage too narrow?

A: Yes, absolutely. Our accessible full-height turnstile is equipped with a dedicated wide passage (≥900mm) specifically designed to accommodate wheelchairs, mobility scooters, strollers, and large luggage. The width meets international accessibility standards, and infrared anti-pinch sensors ensure safe, smooth passage without jamming or pinching risks.

2.Q: Is the accessible door normally kept open? Will it compromise overall security?

A: No, security is not compromised. The accessible passage remains controlled and locked under normal conditions, and only authorized personnel (via access control or visitor systems) can trigger it to open. Meanwhile, the main full-height turnstile channel maintains anti-climb and anti-tailgating security. In case of fire emergencies, the passage automatically unlocks and stays open, balancing safety and security.

3.Q: Could slow-moving elderly or disabled users get caught by the door?

A: No. Our accessible full-height turnstile supports adjustable opening/closing speeds to adapt to slower movement paces. It also features multiple infrared anti-pinch sensors and mechanical cushioning, so the door automatically reverses if an obstruction is detected, eliminating the risk of pinching injuries.

4.Q: Is the maintenance of this accessible turnstile complicated? What about the failure rate?

A: Maintenance is simple, with low failure rates. Core components use a modular design for quick inspection and replacement. The main body is made of durable 304 stainless steel, which is rust and corrosion-resistant for both indoor and outdoor use. The drive system uses a quiet servo motor that supports high-frequency use, requiring only basic cleaning and periodic checks for minimal maintenance costs.

5.Q: Can the accessible full-height turnstile integrate with our existing access control or attendance systems?

A: Yes, it supports seamless integration. The device is compatible with multiple authentication methods including RFID cards, facial recognition, QR codes, and ID cards. It can connect directly to visitor management, time & attendance, and security platforms for real-time data upload and remote management, with no extra modification needed to fit your existing system architecture.
