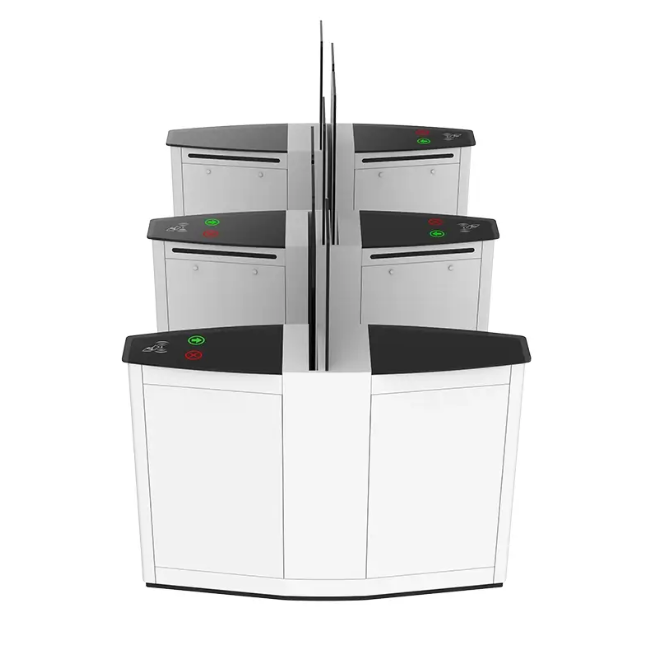

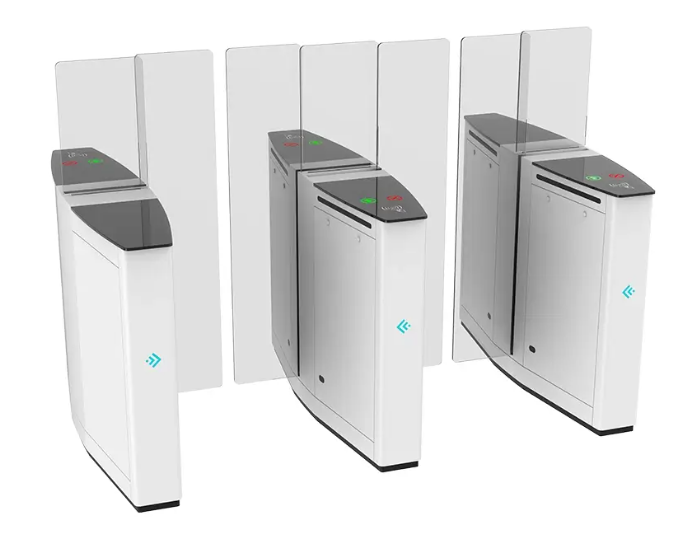

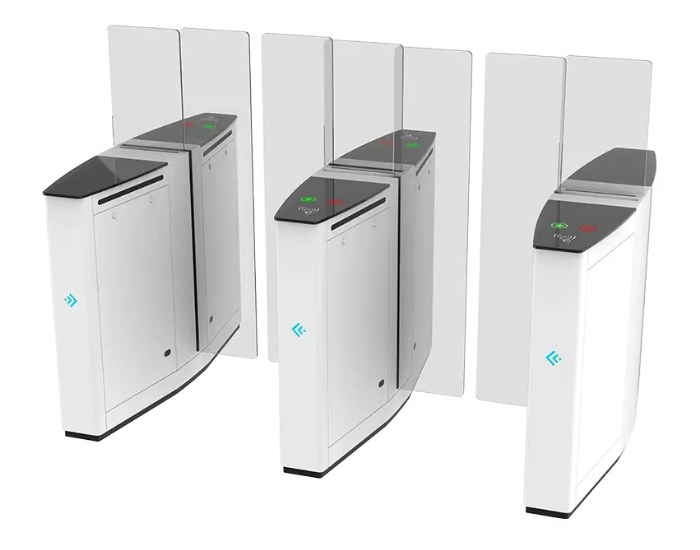

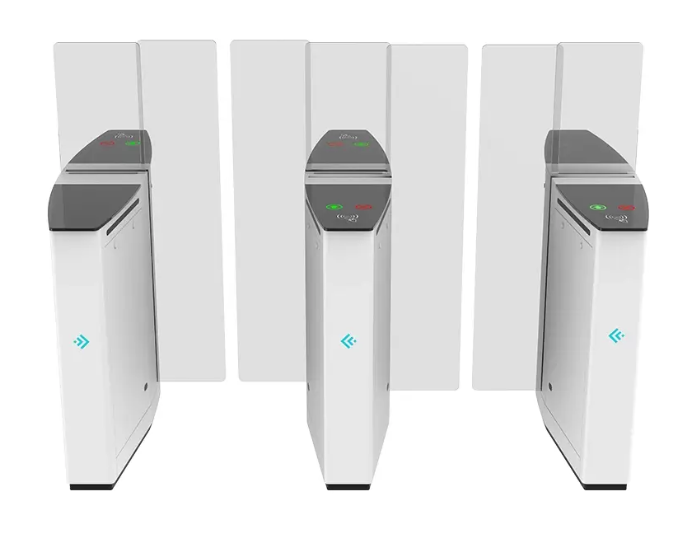

JT603 White Servo Sliding Turnstile Gate

JT603 White Servo Sliding Turnstile Gate

The JT603 sliding turnstile combines a clean, modern white finish with precision servo motor technology, delivering ultra-silent, fast, and reliable access control for commercial environments. Engineered for high-traffic office buildings, corporate lobbies, and smart facilities, it supports smooth passage rates up to 40 people per minute, while multi-beam infrared sensors ensure anti-tailgating and anti-pinch safety. With flexible integration for RFID, QR code, and facial recognition systems, plus customizable channel widths, the AT603 blends contemporary aesthetics with robust performance to meet your security and design needs.
1.Product Dimensions:1400 × 350 × 1000 mm (4.59 × 1.15 × 3.28 ft) as standard, with full customization available to suit site-specific layouts.
2.Channel Width: Adjustable from 600 mm (1.97 ft) to 900 mm (2.95 ft), with custom widths offered to accommodate different user needs, including wheelchair or large-item access.
3.Enclosure Construction: The standard configuration uses painted iron material, while durable SUS304 and SUS316 stainless steel are available as upgrade options to enhance its corrosion resistance in coastal or high-humidity environments.
4.Swing Arm Material: Features clear acrylic as standard, with optional upgrades to tempered glass, plexiglass, or stainless steel for varying security and aesthetic requirements.
5.Surface Finish: Multiple customizable options including brushed, polished, electroplated, and baking paint finishes, to match any interior or exterior design scheme.
6.Traffic Direction: Configurable for one-way or two-way passage, allowing flexible management of pedestrian flow based on your facility’s needs.
7.Drive Mechanism: Equipped with a high-precision servo motor drive, ensuring ultra-silent, smooth, and reliable operation even under continuous use.
8.Passage Throughput: Capable of handling 30–40 persons per minute under normal operating conditions, ideal for high-traffic areas such as office buildings, transit stations, and commercial complexes.

Consult immediately

JINBO Turnstile carries a 2 years warranty and durable maintenance and repair support.

JT603 Sliding Turnstile Functional features

This servo-driven sliding turnstile combines sleek design with industrial-grade performance, delivering reliable, high-efficiency access control tailored for modern commercial environments.

Ultra-Quiet & Smooth Operation The precision servo drive eliminates mechanical noise and jitter, ensuring near-silent opening and closing. This unobtrusive operation makes it ideal for premium office lobbies, corporate buildings, and smart facilities.
High Throughput with Responsive Control With fast start-stop and accurate speed regulation, the system supports a throughput of 30–40 people per minute, maintaining smooth pedestrian flow even during peak hours.
Precise Positioning & Long-Term Stability Real-time position feedback ensures the sliding barrier stops exactly at the set position, with no offset or drift even after years of continuous use.
Flexible Traffic Management The turnstile can be easily configured for one-way or two-way passage, adapting to diverse access rules for offices, public venues, and secure facilities.
Smart Anti-Pinch Safety Protection Integrated with infrared sensors and soft-stop logic, the servo motor automatically slows and reverses when resistance is detected, preventing injuries and equipment damage.
Low-Maintenance Durability Built with overload protection and long-life components, the system operates reliably with minimal downtime, reducing long-term maintenance costs.
Seamless Integration Capability It is fully compatible with major access control systems, including RFID, QR code, facial recognition, and fingerprint readers, enabling straightforward installation and system matching.

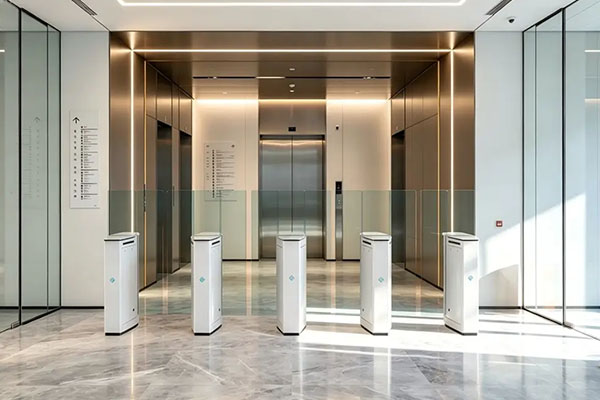

JT603 Sliding Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

JT603 Sliding Turnstile Scene rendering

Sliding Turnstiles Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

Optional：Number of turnstile channels

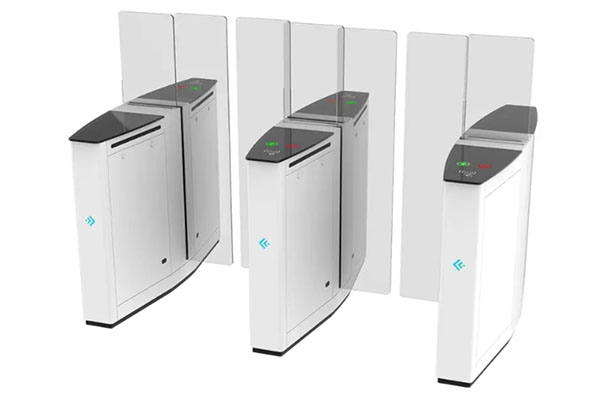

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.

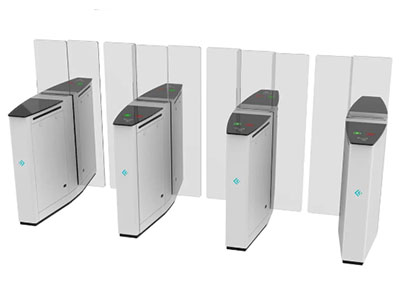

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

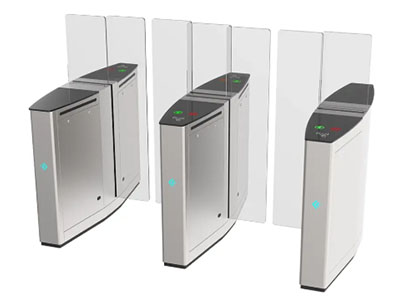

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

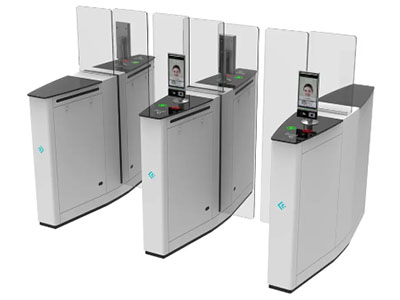

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Diverse Methods of Passage Compatibility.

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional QR Code: We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Touch Button

Optional Touch Button:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Card

Optional Card:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Face Reader

Optional Face Reader:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Remote Control

Optional Remote Control:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Fingerprint Scanner

Optional Fingerprint Scanner:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

Q: Will this servo sliding turnstile automatically open in case of power failure or emergency?
A: Yes. The system features an emergency power-off automatic unlock function. When there is a power outage or emergency, the gate will automatically open to keep the passage fully unobstructed, meeting fire safety requirements and ensuring rapid evacuation.
Q: How long is the service life of the servo motor, and what maintenance is required on a daily basis?
A: Our servo motor is designed for industrial-grade long-term use, capable of stable operation for years under normal conditions, with no easily worn belts or gears. Daily maintenance only requires regular cleaning of the track and inspection of wiring, making it nearly maintenance-free and significantly reducing long-term operating costs.
Q: Can the gate’s opening/closing speed and access permission logic be customized according to our project requirements?
A: Absolutely. The servo system supports precise speed and travel parameter settings, allowing you to adjust the gate’s opening and closing speed based on the scenario (e.g., office buildings, airports). The device can also integrate with your access control system to implement custom access rules based on time, department, or permission groups.
Q: How effective is this sliding turnstile at preventing tailgating? How does it stop unauthorized personnel from following someone through?
A: The device uses the servo motor’s precise positioning in conjunction with infrared sensors to implement multi-layer anti-tailgating logic. It accurately identifies single-pass behavior and immediately locks the gate and triggers an alarm if multiple people tailgate, effectively enhancing entrance security.
Q: Will the servo motor operate unstably in extreme temperatures, such as high heat in summer or low temperatures in winter?
A: No. The servo motors and control boards we use have passed wide-temperature testing and can operate stably between -20°C and 60°C. They will not experience stuttering or positioning errors due to temperature differences, making them suitable for deployment in a variety of indoor and outdoor environments.
