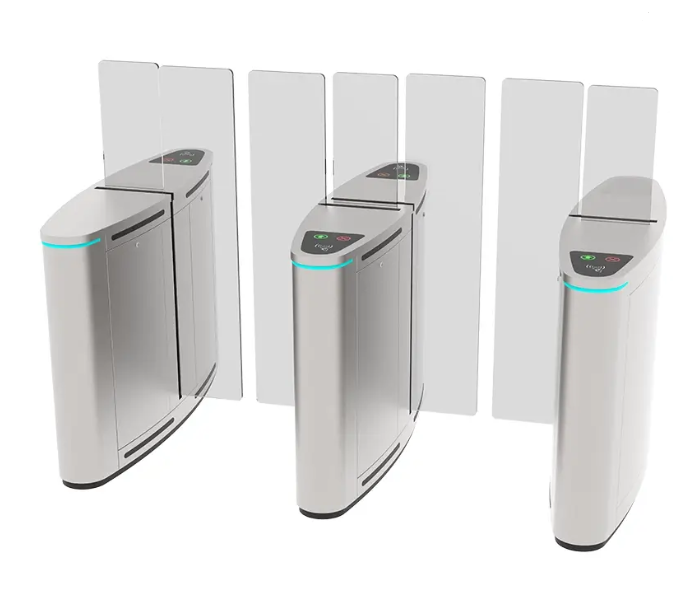

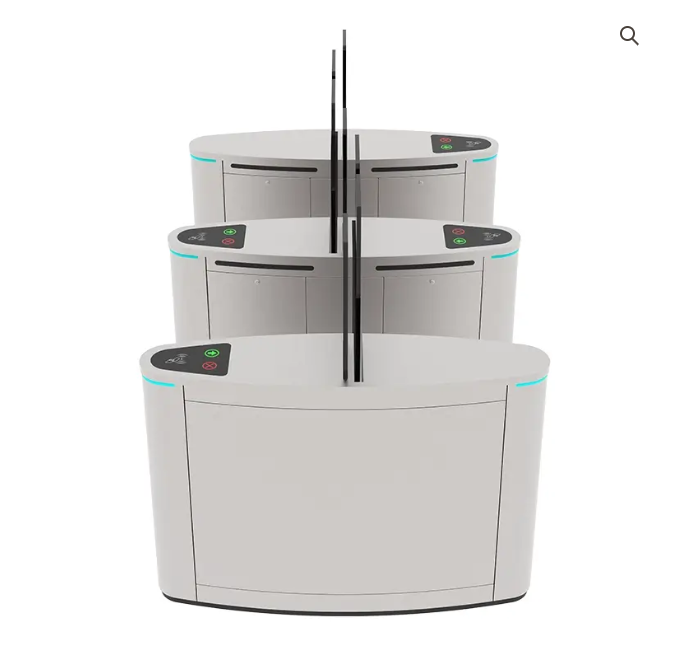

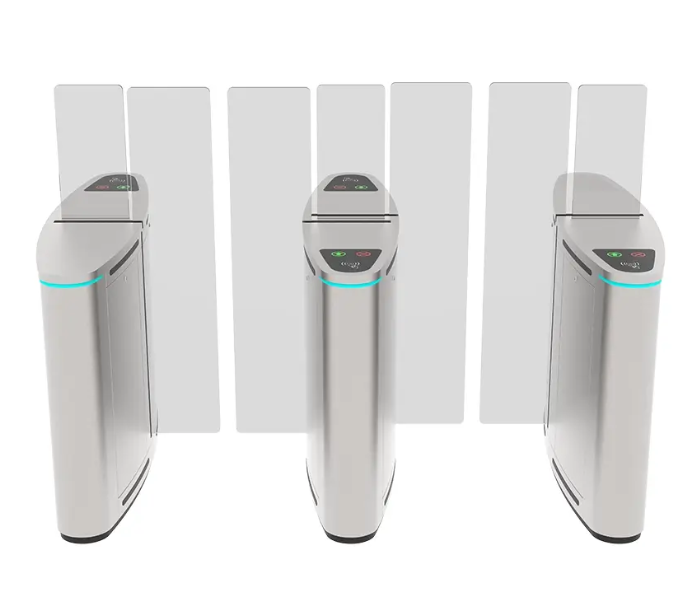

JT606 Oval Stainless Steel Sliding Turnstile

JT606 Oval Stainless Steel Sliding Turnstile

Designed for contemporary corporate offices, airports, luxury hotels, and high-security facilities, this curved sliding turnstile combines sleek, streamlined aesthetics with robust anti-tailgating protection. The smooth, rounded stainless steel housing and full-height transparent barriers deliver a sophisticated, open feel while eliminating unauthorized entry attempts.
1.Product Dimensions:1400 × 350 × 1000 mm (4.60 × 1.15 × 3.28 ft) as standard, with full customization available to suit site-specific layouts.
2.Channel Width: Adjustable from 600 mm (1.97 ft) to 900 mm (2.95 ft), with custom widths offered to accommodate different user needs, including wheelchair or large-item access.
3.Enclosure Construction: Standard build combines iron baking paint with durable SUS304 stainless steel. SUS316 stainless steel is available as an upgrade for enhanced corrosion resistance in coastal or high-humidity environments.
4.Swing Arm Material: Features clear acrylic as standard, with optional upgrades to tempered glass, plexiglass, or stainless steel for varying security and aesthetic requirements.
5.Surface Finish: Multiple customizable options including brushed, polished, electroplated, and baking paint finishes, to match any interior or exterior design scheme.
6.Traffic Direction: Configurable for one-way or two-way passage, allowing flexible management of pedestrian flow based on your facility’s needs.
7.Drive Mechanism: Equipped with a high-precision servo motor drive, ensuring ultra-silent, smooth, and reliable operation even under continuous use.
8.Passage Throughput: Capable of handling 30–40 persons per minute under normal operating conditions, ideal for high-traffic areas such as office buildings, transit stations, and commercial complexes. Get A Quote

Consult immediately

JINBO Turnstile carries a 2 years warranty and durable maintenance and repair support.

JT606 Sliding Turnstile Functional features

When it comes to high-end access control, the servo motor drive system of the AT606 sliding turnstile is far more than just a component—it is the core that redefines reliability, safety, and user experience. Engineered for continuous, high-traffic operation, this solution addresses the limitations of traditional motor systems and delivers a premium performance standard tailored for modern commercial environments.

Precision Closed-Loop Control for Adaptive, Responsive Operation

Unlike open-loop DC motors, the AT606’s servo system operates on a closed-loop feedback mechanism. It continuously monitors the barrier’s position, speed, and torque in real time, making micro-adjustments to every movement.

Dynamic Speed Tuning: The system automatically adapts its speed based on usage scenarios. It opens quickly during peak-hour rushes to keep traffic flowing smoothly, while slowing down gently during low-traffic periods to reduce mechanical stress.
Instant Obstacle Response: If the barrier encounters an unexpected obstruction (such as a person, luggage, or debris), the servo motor detects the change in torque instantly, stopping and reversing direction to prevent pinching, damage, or injury. This level of precision is impossible with standard motor systems.

Ultra-Silent Operation for Noise-Sensitive Environments

A key pain point for many office and hospitality spaces is the noise generated by turnstiles. The AT606’s servo drive eliminates this issue entirely:

Whisper-Quiet Movement: The precision-engineered motor and gear system operates at under 50dB, producing only a soft, smooth sliding sound rather than the loud clicks or whirs common with other turnstiles.
Vibration-Free Performance: There is no jarring jolt when the barrier opens or closes, making it ideal for quiet lobbies, luxury hotels, and corporate headquarters where a calm, professional atmosphere is paramount.

Durability & Low Maintenance Built for 24/7 Use

Traditional motor systems rely on belts, brushes, and gears that wear out quickly with heavy use. The servo drive in the AT606 is built for longevity:

Minimal Wear & Tear: The closed-loop control reduces unnecessary strain on mechanical parts, extending the service life of the entire system. There are no brushes to replace or belts to tighten, significantly lowering maintenance costs and downtime.
Consistent Performance Over Time: Unlike standard motors that slow down or become noisy as they age, the servo motor maintains its speed and precision for years, ensuring the turnstile operates like new even after tens of thousands of cycles.

Enhanced Safety & Security Integration

The servo system works in tandem with the turnstile’s security features to create a comprehensive safety net:

Soft Start/Stop: The barrier accelerates and decelerates smoothly, eliminating sudden movements that could pose a risk to users, especially children or the elderly.
Anti-Tailgating Synergy: Combined with infrared sensors, the servo motor can instantly lock the barrier if tailgating is detected, ensuring the system responds faster than human reaction time to unauthorized access attempts.
Emergency Response Ready: In case of a power outage or emergency, the servo drive supports a fail-safe mode, allowing the barrier to unlock automatically to enable quick and safe evacuation.

Customizable Operation to Match Your Facility’s Needs

The servo motor’s programmability allows you to tailor the turnstile’s behavior to your exact requirements:

Adjustable Passage Times: You can set how long the barrier stays open after a valid access is granted, balancing speed with security.
Directional Flow Control: The motor supports one-way, two-way, or even scheduled directional changes (e.g., entry-only in the morning, exit-only in the evening).
Soft Reset Function: If a user fails to pass through the turnstile within the set time, the system will automatically reset to the locked position, preventing open access gaps.

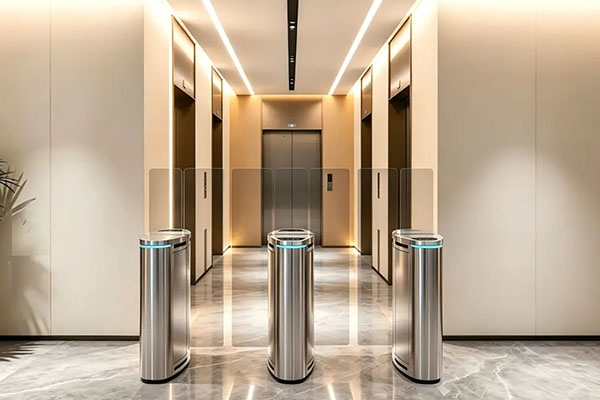

JT606 Sliding Turnstile Scene rendering

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

JT606 Sliding Turnstile Scene rendering

Sliding Turnstiles Customization

We offer OEM and ODM services. We have an experienced design and technical team capable of providing in-depth customization to meet any of your needs. We will provide a range of materials as soon as possible, such as 3D renderings and dimensional drawings. In addition, we also offer biometric devices such as IC/ID card readers, fingerprint scanners, QR code scanners, and facial recognition cameras.

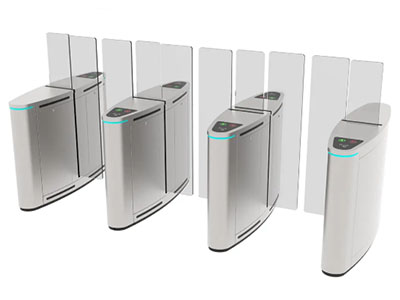

Optional：Number of turnstile channels

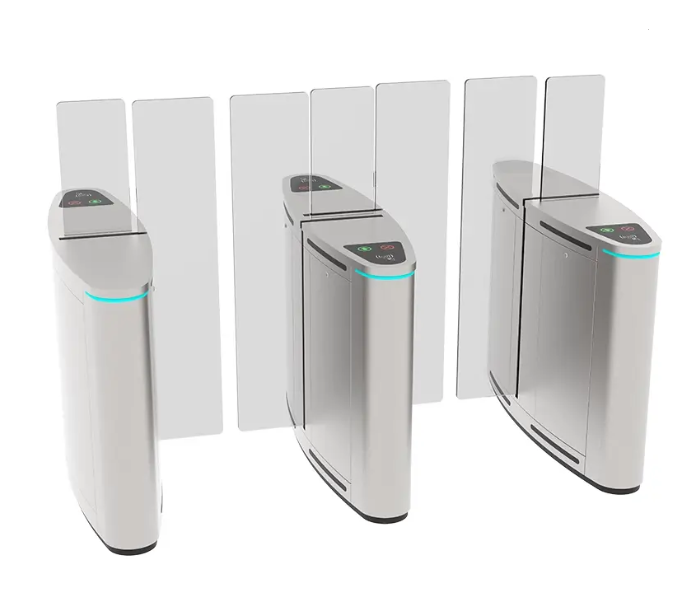

The diagram shows a three-channel system consisting of two single-core and two dual-core sliding turntiles. The number of turntiles can be increased if more channels are needed.

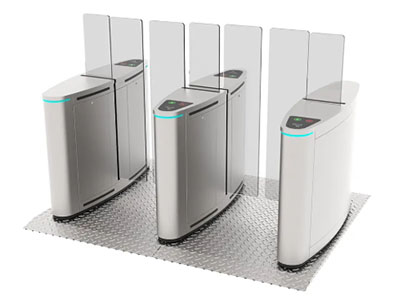

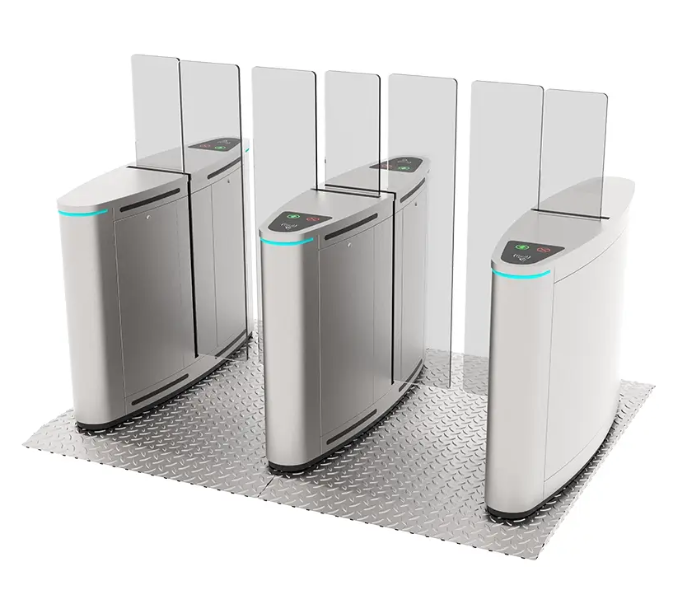

Optional： guardrails and base

Say goodbye to fixed locations. This product can be equipped with dedicated guardrails and bases, and casters are optional. Without casters, it can be fixed in one place for clearer pedestrian flow guidance; with casters, the installation location can be moved as needed, achieving flexible storage and convenient space management.

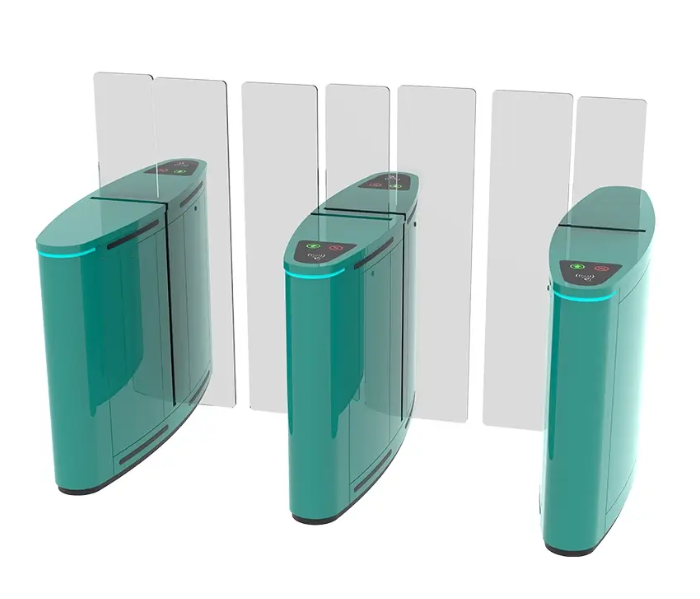

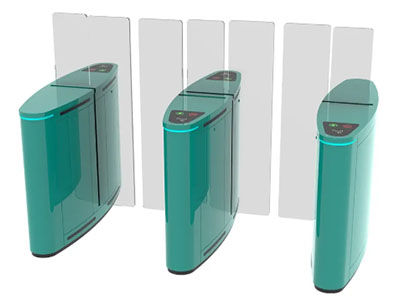

Optional：Turnstiles color

In addition to the natural silver-white of stainless steel, we also offer a variety of coating colors and processing techniques, such as baking paint and electroplating, to help you create unique product aesthetic solutions to match your environment.

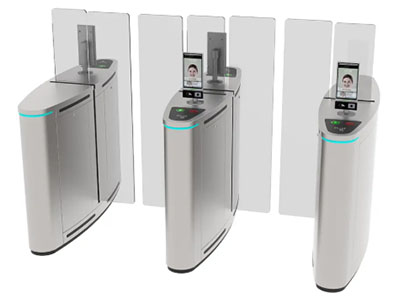

Optional： your own exclusive pass

Our rotary turnstiles support multiple authentication methods (such as facial recognition, fingerprint recognition, card swiping, and QR code scanning) and can be flexibly configured according to security levels to meet the needs of different scenarios. Of course, you can also use your own identification device; please tell us your device size, and we will integrate it into the turnstile.

Diverse Methods of Passage Compatibility.

Our turnstiles are compatible with different access methods. If you already have your own access system, tell us your device dimensions and we can make it compatible with this device.

QR Code

Optional QR Code: We offer QR code module integration; personnel can enter by scanning a QR code, or visitors can enter using a temporary QR code.

Touch Button

Optional Touch Button:No need to take out a card; simply touch the sensor with your fingertip and the door will open gracefully, allowing you to easily enjoy the experience of entering and exiting.

Card

Optional Card:Each card is a unique security key. Simply swipe the card to pass through, achieving accurate identity verification and authorization, ensuring the security of every entrance.

Face Reader

Optional Face Reader:Free your hands and verify in seconds. Accurately identify authorized personnel, significantly improve access efficiency, and facilitate intelligent management.

Remote Control

Optional Remote Control:Adding a remote control system enables long-distance operation; one-button door opening improves pedestrian traffic efficiency and provides ultimate convenience.

Fingerprint Scanner

Optional Fingerprint Scanner:Utilizing mature fingerprint recognition technology, we provide you with reliable access control that combines efficiency and security.

Q: Will the servo motor sliding turnstile lag or get stuck after long-term frequent use? A: No. Equipped with high-precision closed-loop servo control system, this AT606 sliding turnstile features stable torque output and precise position calibration. It will not lag, jam or shift position even after tens of thousands of high-frequency opening and closing cycles, maintaining consistent smooth operation for long-term daily use.
Q: Is the servo motor adjustable to adapt to different pedestrian speeds and scene needs? A: Yes. The servo driving system supports full parameter customization. Users can freely adjust opening speed, closing speed, delay closing time and buffer sensitivity according to actual scenarios such as office peak hours, visitor access or low-traffic periods, achieving personalized access management.
Q: Will the servo motor produce loud noise or vibration during fast switching? A: Absolutely not. Different from traditional ordinary motors with harsh friction sound and jitter, the servo motor adopts silent frequency conversion operation and soft start-stop technology. The whole running process is mute, vibration-free and stable, and will not cause noise interference to office buildings, hotels and quiet public areas.
Q: Does this servo sliding turnstile have protective measures if someone accidentally blocks the gate? A: Yes. The servo system has real-time torque sensing anti-collision protection. Once the swing arm encounters pedestrians, luggage or obstacles during operation, it will immediately stop and rebound intelligently to avoid clamping injuries or equipment damage, greatly improving the safety of pedestrian passage.
Q: Is the servo motor system easy to maintain, and does it require regular parts replacement? A: The servo motor is brushless and belt-free integrated structure, with fewer wearing parts and ultra-low failure rate. Compared with traditional motors, it requires almost no daily maintenance, no regular lubrication or replacement of wearing parts, effectively saving later maintenance time and operating costs.
