The standard brushless swing gate adopts our company's exterior cabinet, which is novel, beautiful and uniquely shaped. It is easy to use and convenient for overall maintenance. The door body is driven by a synchronous belt. When the closing resistance exceeds the set value, the door body can open automatically. In case of power failure, the door body will also open automatically without the need for a battery. The intelligent gate is an intelligent accessmanagement device for non-contact passage detection and control, adopting the company's latest patented mechatronics control and drive technology. Multiple sets of sensors control the entrance and exit through the glass door wings. Authorized personnel can pass through smoothly without any hindrance and without individual inspection, while unauthorized passage is rejected. It provides high-quality entrance and exit control to ensure the safety of children in the park.

    This gate is suitable for kindergartens, primary schools, office buildings, hotels and other parks. Service life and safety are the primary considerations for the product. The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical collision, thus achieving stable operation, low noise and less wear. According to the summary of actual usage data from numerous projects, the actual service life of the equipment is more than 5 million times. High-priced components such as magnet adsorption, belt drive, and servo mobile positioning driver are all humanized designs to avoid pinching children.

Technical Specification JOT-BT550W-1/2

Dimensions (mm) and Weight (kg)

Length: 1200 mm

Width: 280 mm

Height: 980 mm

Weight: Approximately 35 KG

Main Materials

Cabinet: 304 stainless steel

Surface Treatment: Brushed / Polished / Electroplated / Painted

Movement: 45# steel with color zinc electroplating on the surface; Mechanical movement: [Based on German technology] non-destructive movement

Infrared: Stainless steel anti-glare metal sensor

Door Body: Organic glass or stainless steel tube

Movement Performance

Transmission Mode: Servo mobile positioning driver

Safety Mode: Unobstructed passage after power failure

Power-assisted Drive: Brushless motor

Door Opening Method: 180-degree split opening

Door Opening/Closing Speed: 0.1-999 seconds (user adjustable)

Passage Width: 550mm-600mm;

Door Body Stroke: 300mm (single door body)

Equipment Noise: ≤30db when opening and closing the door

Passing Speed: 35 persons/minute in normally closed mode; 60 persons/minute in normally open mode

Control Input/Output: 6 channels of switch output (12V and 24V dry contact signals) /

Functional Features

Multiple sets of infrared sensors monitor the channel status in real-time, with precise logical judgment, enabling unobstructed authorized passage

• Four-fold protection for pedestrians in the channel: mechanical device protection, door position detection, current detection, and channel sensor protection to prevent clamping

• The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical collision

• CNC machining process, fine surface treatment, and strong corrosion resistance

• Equipped with an automatic reset function: after a pedestrian's legal verification, if they do not pass within the specified time, the system will automatically cancel the user's passage permission for this time.

• Convenient and easy to use, facilitating the passage of personal items such as packages and luggage

• Anti-tailgating function: protection level 2

• Passage mode: one-way, two-way (optional), with adjustable running speed; multiple working modes available for selection

• Light prompt: indication of the direction of passage

• Equipped with lightning protection and leakage protection functions

• Protection functions: anti-pinch, anti-collision, anti-blocking, anti-stall, and protection against electrical overvoltage and overcurrent

• Function to prevent illegal operations and alarm

• Standard external electrical interface with photoelectric safety isolation, which can be connected to various control devices for easy system integration

• Remote control and setting functions

Electrical and Environmental

• Voltage: 110V to 240V AC (wide-range power input voltage)

• Frequency: single-phase 50Hz to 60Hz

• Working voltage: DC24V

• Current: static 300mA; dynamic 4A (maximum working current)

• Operating temperature: -20 to 70°C (-4 to 158°F)

• Storage temperature: -40 to 80°C (-40 to 176°F)

• Relative humidity: 5% to 95% in non-condensing state

Functions

2.2 Expandable functions:

• Two-way automatic counting function, which can "add" in the forward direction and "subtract" in the reverse direction, automatically counting the number of people present (customized).

• Voice prompt function: "Welcome! Have a nice trip! Please swipe your card!" etc. (customized);

• Selection of telescopic arm material and original color.

Installation Requirements

Single-phase 3A 110V to 220V AC power supply, grounded

Connection wires to control equipment

Possible civil engineering work and fixing work

Note:

Prevention Level 1: Basic anti-tailgating identification system, with a relatively short device length, achieving the basic level of two-way single-person passage identification;

Prevention Level 2: Anti-tailgating identification system with optimal length and structure, achieving a higher level of two-way single-person passage identification, and capable of identifying children and strollers;

Prevention Level 3: This device uses mechanical devices and sensors installed on the machinery for two-way passage identification and tailgating control.

Product Application Examples：

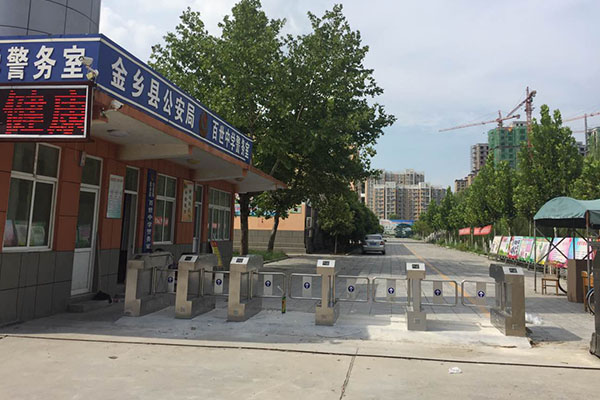

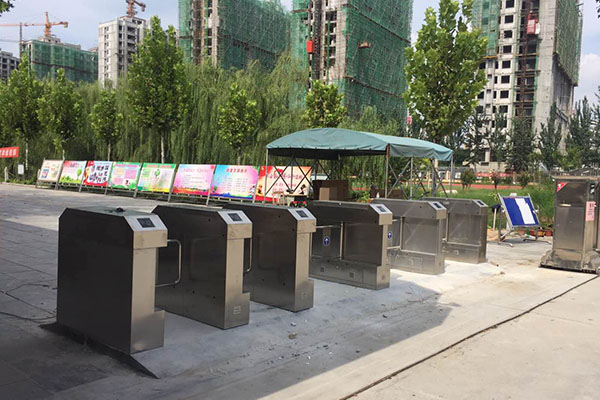

These photos show the on-site installation of our standard brushless swing gates at a middle school in China.

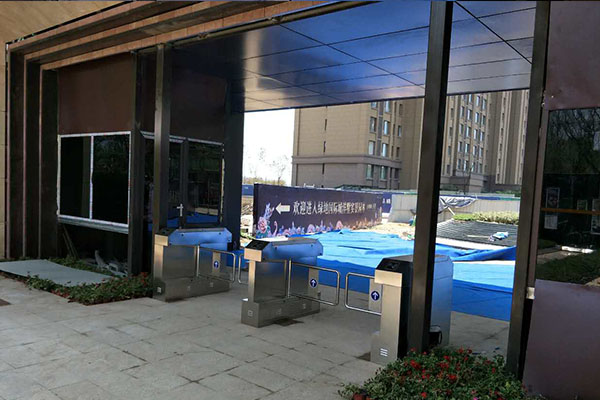

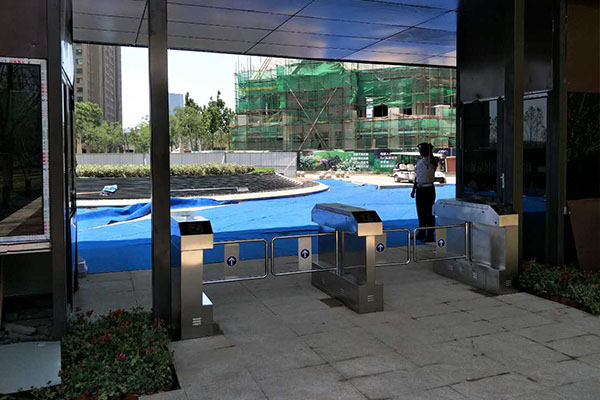

These photos show the on-site installation of our standard brushless swing gates at a residential community in China.
