The "Little Waist" swing gate adopts our company's exterior cabinet, which is novel, beautiful, and has a unique shape. It is easy and simple to use and conducive to overall maintenance. The door body is driven by the combination of an inclined plane and the main gear of the movement. When the door-closing resistance is greater than the set value, the door body can open automatically. In case of power failure, the door body will also open automatically without the need for a battery. The intelligent gate is an intelligent channel management device for non-contact channel detection and control, adopting the company's latest patented mechatronics control and drive technology. Multiple groups of sensors control the entrance and exit through the glass door wings. Authorized legal personnel can pass smoothly without any obstacles without individual inspection, while unauthorized access is denied. It provides high-quality entrance and exit control to ensure the safety of children in the park.

    This gate is suitable for kindergartens, primary schools, office buildings, hotels and other parks. Service life and safety are the

Technical Specifications

Model: JOT-ST-XY200-1

Dimensions (mm) and Weight (kg)

Length:1200 mm

Width: 200 mm

Height: 980 mm

Weight: Approximately 40 KG

Main Materials

Cabinet: 304 stainless steel

Surface Treatment: Brushing / Polishing / Electroplating / Painting

Movement: 45# steel with color zinc plating on the surface; Mechanical movement: [Based on German technology] non-destructive movement

Infrared: Stainless steel anti-glare metal sensor

Door body: Stainless steel or organic glass (color optional)

Movement Performance

Transmission mode: Servo mobile positioning driver

Safety mode: Unobstructed passage after power failure

Power-assisted drive: Brushless motor

Door opening method: 180-degree split opening

Door opening/closing speed: 0.1-999 seconds (user adjustable)

Passage width: 550mm-750mm;

Door body stroke: 300mm-400mm (single door body)

Equipment noise: ≤30db when opening/closing the door

Passing speed: 35 persons/minute in normally closed mode; 60 persons/minute in normally open mode

Control input/output: 6 channels of switch output (12V and 24V dry contact signals) /

Functional Features

• Multiple sets of infrared sensors monitor channel status in real-time, with precise logical judgment for unobstructed authorized passage

• Four-fold protection for pedestrians in the channel, including mechanical device protection, door

position detection, current detection, and channel sensor protection, to prevent clamping

• The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical impact

• CNC machining process with fine surface treatment, strong corrosion resistance

• Automatic reset function: after a pedestrian's legal verification, if they do not pass within the specified time, the system will automatically cancel the user's passage permission for this time.

• Convenient and easy to use, facilitating the passage of personal items such as packages and luggage

• Anti-tailgating function: protection level 2

• Passage mode: one-way, two-way (optional), adjustable running speed; multiple working modes available for selection

• Light prompt: direction of passage indication

• With lightning protection and leakage protection functions

• Protection functions: anti-pinch, anti-collision, anti-blocking, anti-stall, anti-electrical overvoltage and overcurrent functions

• Prevention of illegal operations and alarm function

• Standard external electrical interface with photoelectric safety isolation, can be connected with various control devices, facilitating system integration

• Remote control and setting functions

Electrical and Environmental

• Voltage: 110V to 240V AC (wide range of power input voltage)

• Frequency: single-phase 50Hz to 60Hz

• Working voltage: DC24V

• Current: static 300mA; dynamic 4A (maximum working current)

• Operating temperature: -20 to 70°C (-4 to 158°F)

• Storage temperature: -40 to 80°C (-40 to 176°F)

• Relative humidity: 5% to 95% in non-condensing state

Functions

2.2 Expandable functions:

• Two-way automatic counting function, which can "add" in the forward direction and "subtract" in the reverse direction, automatically counting the number of people present (customized).

• Voice prompt function: "Welcome! Have a nice trip! Please swipe your card!" etc. (customized);

• Selection of telescopic arm material and original color.

Installation Requirements

Single-phase 3A 110V to 220V AC power supply, grounded

Connecting wires to control equipment

Possible civil engineering work and fixing work

Note:

Security Level 1: Basic anti-tailgating identification system. The equipment is relatively short in length and meets the basic level of bidirectional single-person passage identification.

Security Level 2: Anti-tailgating identification system with optimal length and structure, reaching a higher level of bidirectional single-person passage identification, and capable of identifying children and strollers.

Security Level 3: This equipment uses mechanical devices and sensors installed on the machinery for bidirectional passage identification and tailgating control.

Product Application Examples：

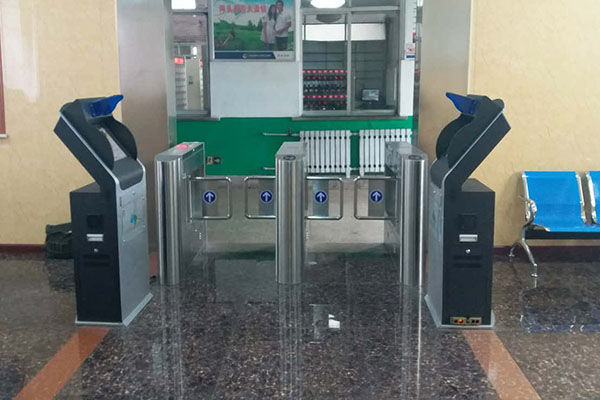

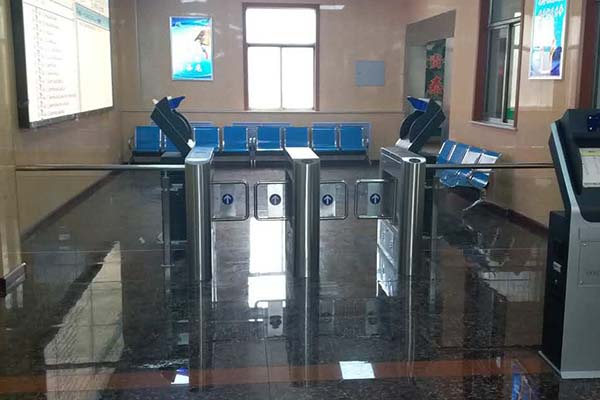

This photo shows the on-site application of our Xiaoman Yao Swing Gate at a mine in China.
