The square speed pass gate adopts our company's exterior chassis, which is novel, beautiful and unique in appearance. It is easy to use and conducive to overall maintenance. The door body is driven by a synchronous belt. When the closing resistance is greater than the set value, the door body can open automatically. When the power is off, the door body will also open automatically without a battery. The intelligent gate is an intelligent access management device for non-contact channel detection and control, adopting the company's latest patented mechatronics control and drive technology. Multiple sets of sensors control the entrance and exit through the glass door wings. Authorized legitimate personnel can pass smoothly without any obstruction without individual inspection, while unauthorized access is denied, providing high-quality entrance and exit control to ensure the safety of children in the park.

This gate is suitable for kindergartens, primary schools, office buildings, hotels and other parks. Service life and safety are the primary considerations for the product. The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical collision, thus achieving stable operation, low noise and less wear. Based on the summary of actual usage data from numerous projects, the actual service life of the equipment is more than 5 million times. High-priced components such as magnet adsorption, belt drive, and servo mobile positioning driver are all humanized designs to avoid pinching children.

echnical Specifications

Dimensions (mm) and Weight (kg)

Length: 1400 mm

Width: 200 mm

Height: 980 mm

Weight: Approximately 50 kg

Main Materials

Cabinet: 304 stainless steel

Surface Treatment: Brushed / Polished / Electroplated / Painted

Movement: 45# steel, integral columnar stainless steel shell, brake clutch locking, mechanical movement: [Based on German technology] non-destructive movement

Infrared: Stainless steel anti-glare metal sensor

Door Body: Organic glass or extra-soft rubber

Movement Performance

Transmission Mode: Servo mobile positioning driver

Safety Mode: Unobstructed passage after power failure

Power-assisted Drive: Brushless motor

Opening Method: 180-degree split opening

Door Opening/Closing Speed: 0.1-999 seconds (user-adjustable)

Passage Width: 550mm-600mm;

Door Body Stroke: 300mm (single door body)

Equipment Noise: ≤30db when opening and closing the door

Passing Speed: 35 persons/minute in normally closed mode; 60 persons/minute in normally open mode

Control Input/Output: 6 channels of switching output (12V and 24V dry contact signals) / 3 channels of switching input (DC level signals with pulse width not less than 100ms, driving current not less than 10mA, and high-low level difference of 5 ~ 36V)

Relative Humidity: 0 ~ 95% (non-condensing)

Movement Lifespan: 5 million times

Customization Features

◆ Material, surface treatment method, and appearance style dimensions

◆ Integrated access control system

◆ Integrated ticketing system

◆ Integrated photographing system

◆ Integrated temperature control system

◆ Installation of remote control buttons

◆ Installation of LED counter (optional built-in or external)

◆ Waterproof and dustproof design: IP64

Functional Features

• Multiple sets of infrared sensors monitor the channel status in real-time, with precise logical judgment, enabling unobstructed authorized passage.

• Four-fold protection for pedestrians in the channel, including mechanical device protection, door position detection, current detection, and channel sensor protection, to prevent clamping.

• The entire system operates with a stepless positioning device, and the operation process is controlled by sensors without mechanical impact.

• CNC machining process, fine surface treatment, and strong corrosion resistance.

• Equipped with an automatic reset function. If a pedestrian does not pass within the specified time after legal verification, the system will automatically cancel the user's passage permission for this time.

• Convenient and easy to use, facilitating the passage of personal belongings such as packages and luggage.

• Anti-tailing function: protection level 2.

• Passage mode: one-way, two-way (optional), adjustable running speed; multiple working modes available for selection.

• Light prompt: indicates the direction of passage.

• Equipped with lightning protection and leakage protection functions.

• Protection functions: anti-pinch, anti-collision, anti-blocking, anti-stall, and anti-electrical overvoltage and overcurrent functions.

• Prevents illegal operations and has an alarm function.

• Standard external electrical interface with photoelectric safety isolation, which can be connected to various control devices for easy system integration.

• Remote control and setting functions.

Electrical and Environmental Specifications

• Voltage: 110V to 240V AC (wide-range power input voltage)

• Frequency: Single-phase 50Hz to 60Hz

• Operating voltage: DC24V

• Current: Static 300mA; Dynamic 4A (maximum operating current)

• Operating temperature: -20 to 70°C (-4 to 158°F)

• Storage temperature: -40 to 80°C (-40 to 176°F)

• Relative humidity: 5% to 95% in non-condensing state

Functions

2.2 Expandable functions:

• Bidirectional automatic counting function, which can "add" in the forward direction and "subtract" in the reverse direction, automatically counting the number of people present (customized).

• Voice prompt function: "Welcome! Have a nice trip! Please swipe your card!" etc. (customized);

• Selection of telescopic arm material and original color.

Installation Requirements

Single-phase 3A 110V to 220V AC power supply, grounded

Connection lines to control equipment

Possible civil engineering work and fixing work

Remarks:

Prevention Level 1: Basic anti-tailgating identification system. The equipment is relatively short in length and meets the basic level of two-way single-person passage identification.

Prevention Level 2: Anti-tailgating identification system with optimal length and structure. It reaches a higher level of two-way single-person passage identification and can identify children and strollers.

Prevention Level 3: This equipment uses mechanical devices and sensors installed on the machinery for two-way passage identification and tailgating control

Product Application Examples：

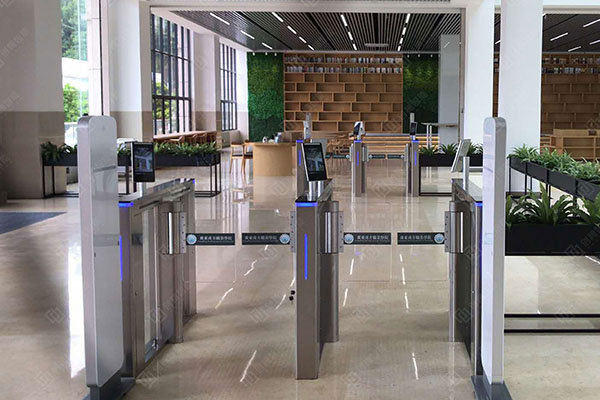

This photo shows the on-site installation of our square-shaped speed pass gates at a university library in China.

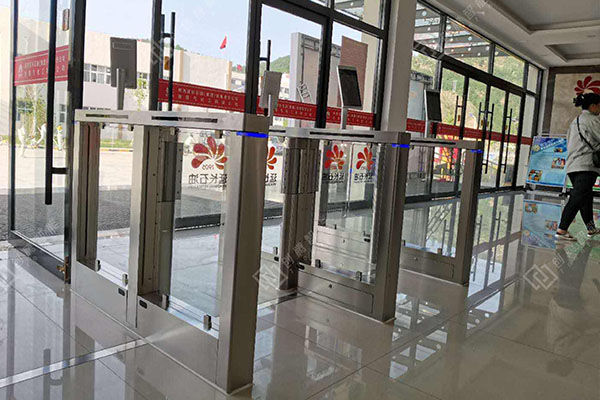

This photo shows the on-site installation of our

at a corporate premises in China.
